Pitcher Plant Mosquito Trap

Safe and effective mosquito trap for family use

Culicidae is a family under the order Diptera. The organism in this familyis often called a mosquito, and it is a tiny flying insect with a sting suction mouthpart. Female mosquito usually feed on human blood,and mosquito-borne diseases and their equivalents kill more than 1 million people each year and infect more than 1 billion people, contributing to debilitating pain, brain damage, blindness, and other serious consequences.

Mosquitoes transmit yellow fever is also called “the initial viral hemorrhagic fever” , Mosquitoes are found on all continents except Antarctica and they reproduce fast and have a high prolification rate. They can lay eggs six to eight times in their lifetime, with 200 to 300 grains each time.

TIMELINE

Sept 2019 – Dec 2019

MY ROLE

Product Design
UX Research

TEAM MEMBERS

Ao Chen

TOOLS USED

Adobe suite
Rhino
Keyshot

How can we kill mosquitos safely and effectively?

USER INTERVIEW

Vivian 22 female B
There was a mosquito buzzing and flying all the time, stopping on my face from time to time. I couldn't sleep and I was upset. Mosquito repellent smells too strong, making me dizzy. Coils are okay, but they need to be ignited, which is troublesome. I used the mosquito coils once, and accidentally knocked over the plate. Insecticides are not very good to one's health although they work well. I have to wipe the blood on the wall off or it would be disgusting.
Jennie 19 female AB
I get bitten wherever there are mosquitoes. It is itchy.I like to wear skirts in summer, but when I got stung,it would be red and swollen. I do not actively kill mosquitoes, because mosquitoes are too flexible to kill.I overturned a bottle of mosquito repellent once, and the smell in the room was too strong. I spent a long time scrubbing, and then I felt dizzy. The repellent may be poisonous.
Bob 48 male O
I had an unpleasant experience of being bitten by mosquitoes. I woke up at midnight because i couldn't sleep well. Of course I was affected the next day
I have tried mosquito coils, sprays, etc. They are useful in small indoor environments, but they are also toxic.
Mike 74 Male O
I can’t sleep in summer and I have tried mosquito nets, mosquito repellent. Mosquito nets work well, but the effect can only last for five or six hours.The mosquito blood on the wall is so disgusting, but I have to wipe it off.The frequency of being bitten by mosquitoes is five or six times a day in summer.
Angela, 36, female type AB
I'm bitten by mosquito everyday and I have used mosquito repellent bracelet, mosquito killer lamp,electric mosquito slap, mosquito coil, mosquito repellent sticker The best is Liushen water.
Jackson 67 Male B
I indeed had an unpleasant experience of being bitten by a mosquito. I tried mosquito nets because the hotel forgot to close the window and there appeared 55 bags on my leg.The mosquito net is not that effecient. I feel dizzy when see the blood on the wall.
上一张幻灯片
下一张幻灯片

COMPATITIVE ANALYSIS

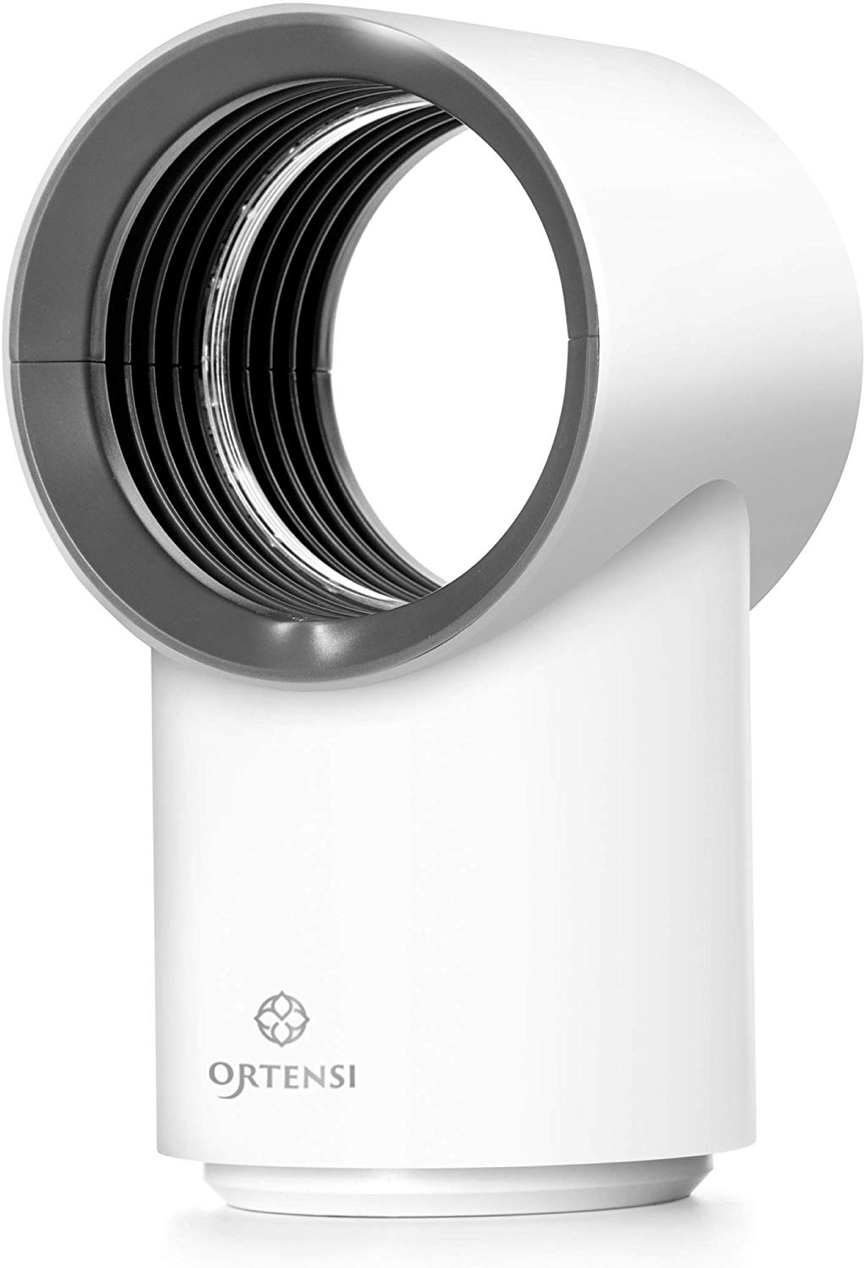

MOSQUITO KILLING LAMP
Principle: UV – the phototaxis of mosquitoes. It can attract mosquitoes by simulating the carbon dioxide exhaled by human body and can make mosquitoes run to the mosquito killer actively, and then use internal high-voltage electricity to eliminate it.
Disadvantages: 1. Extremely poor daytime effect 2. Loud voice 3. Daily charging required

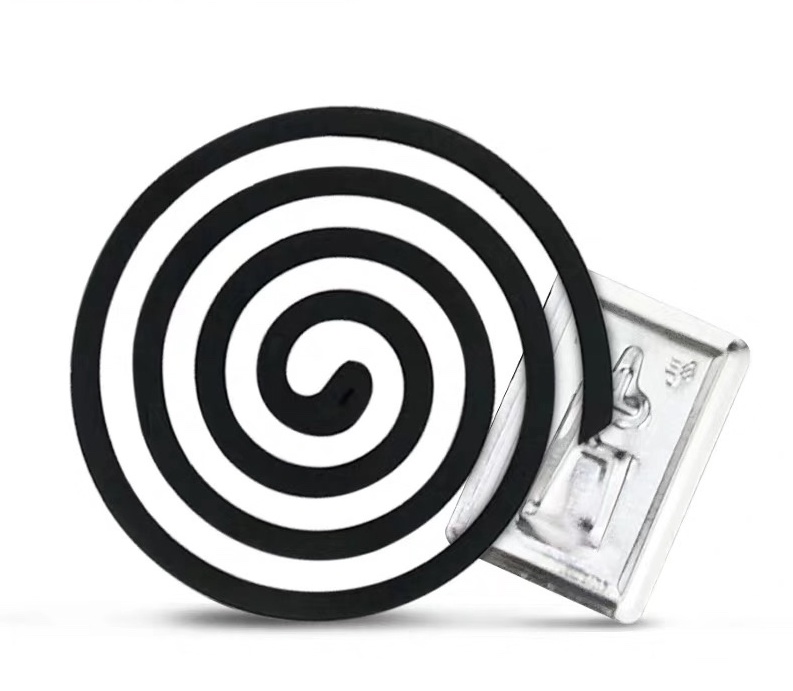

MOSQUITO REPELLENT INCENSE AND
SPRAY
Principle: chemical mosquito control
Disadvantages: biological resistance; do harm to human health. Deet is toxic to some extent and should not be used in sensitive skin. Picardine is also toxic. It is not recommended for children under 1-2 years old

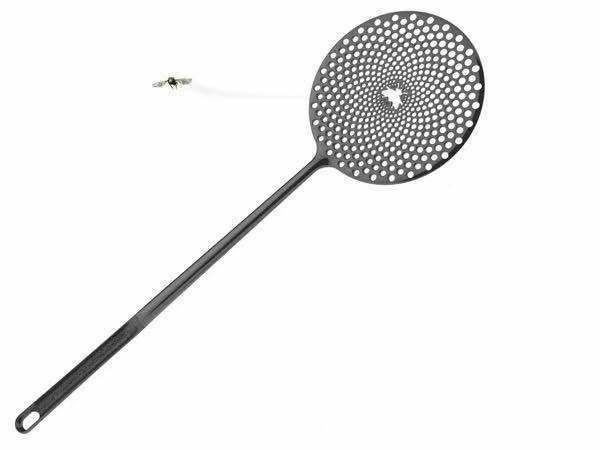

FLYSWATTER
This is a common physical method to kill mosquitoes. The disadvantage is that when users kill mosquitoes, they will leave mosquito’s bodies and bloodstains on the white wall, which is difficult to deal with.

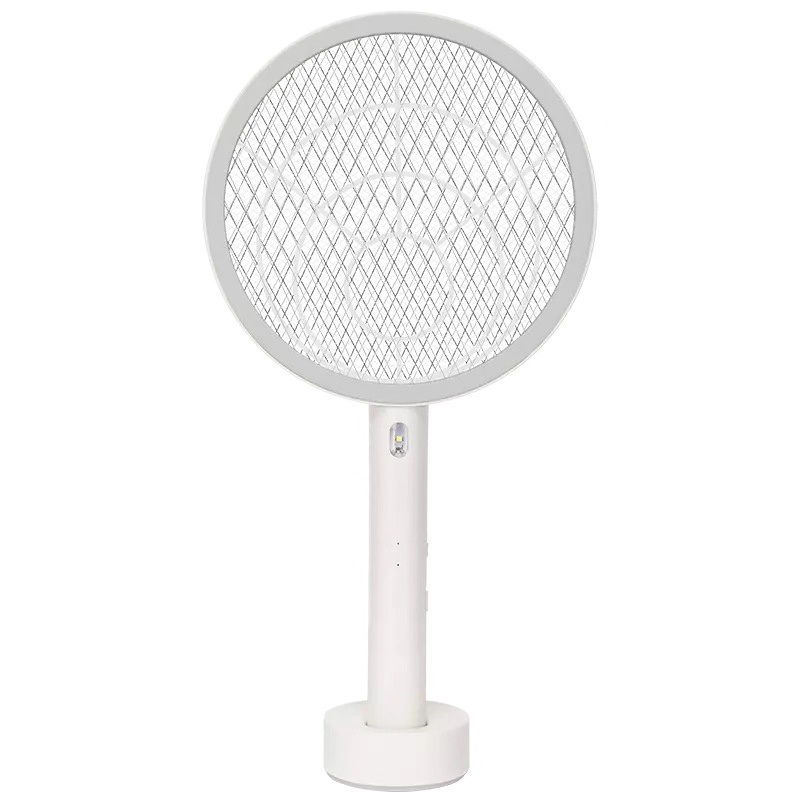

ELECTRIC MOSQUITO SWATTER
Principle: produce high voltage to kill mosquitoes.It will not cause too much harm to people
Disadvantages: 1. Can’t kill mosquitoes on the wall 2.when shooting mosquitoes in the air, the collection of mosquito bodies is a problem

PERSONA

“I feel dizzy when I see blood and it’s disgusting to see mosquito bodies and blood on the wall”
Name: Vivian Gender: Female
Age: 37 Occupation: Doctor
Blood Type: B
The demand for mosquito control: it can effectively drive mosquitoes; it is convenient to use, non-
toxic and harmless, healthy, and does not have too much odor

IDEATION

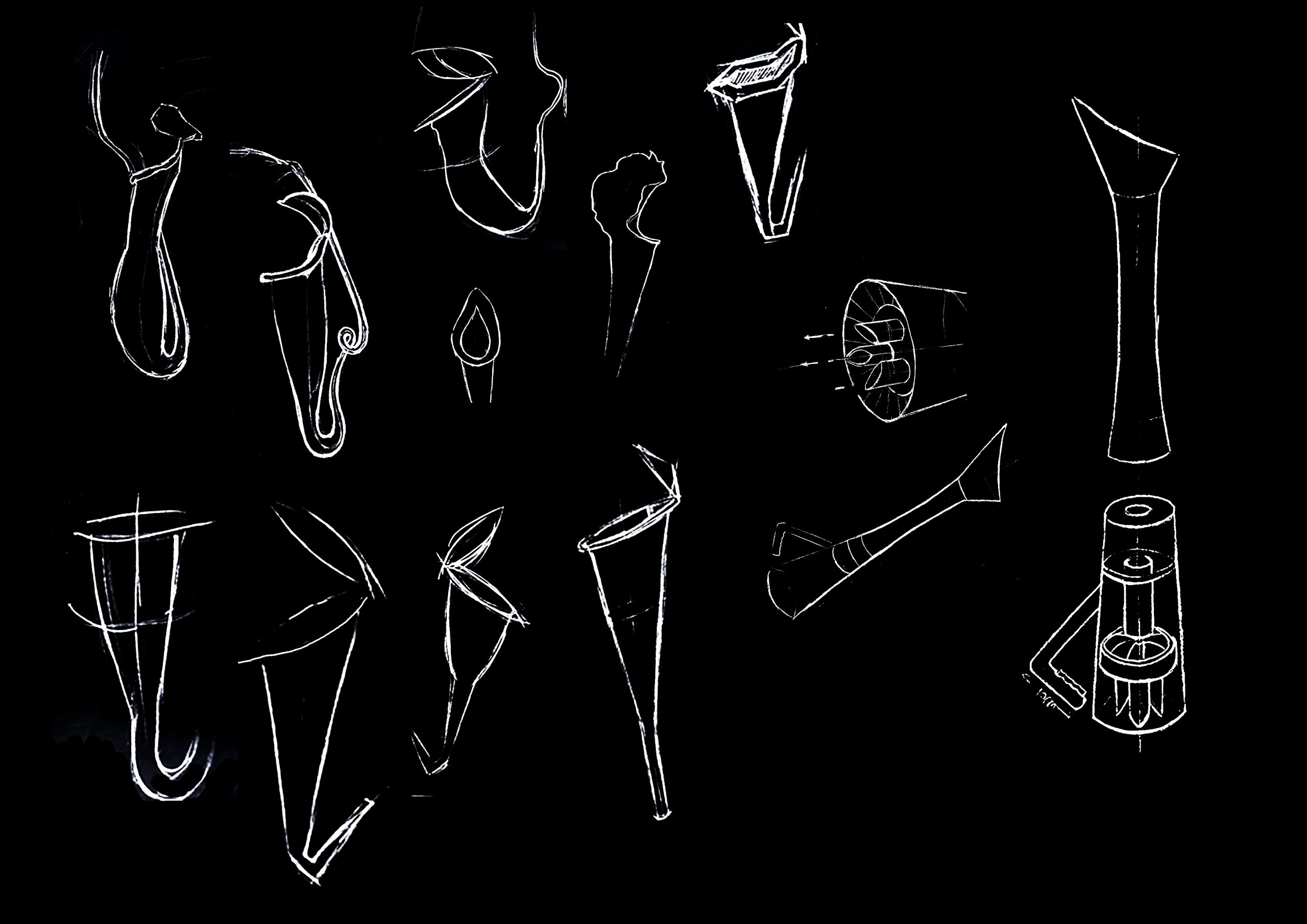

SKETCH

Pitcher is a plant that feeds on mosquitoes, flies and other insects. It can secrete fragrance and attract insects. The mouth of the bottle is smooth, and the insects will fall into the bottle, drowned by the liquid secreted from the bottom of the bottle. The pitcher will decompose the nutrients of the insect body, and gradually digest and absorb them. It’s my inspiration. I hope that through bionic design, my products will be effecient in catching and killing mosquitoes.

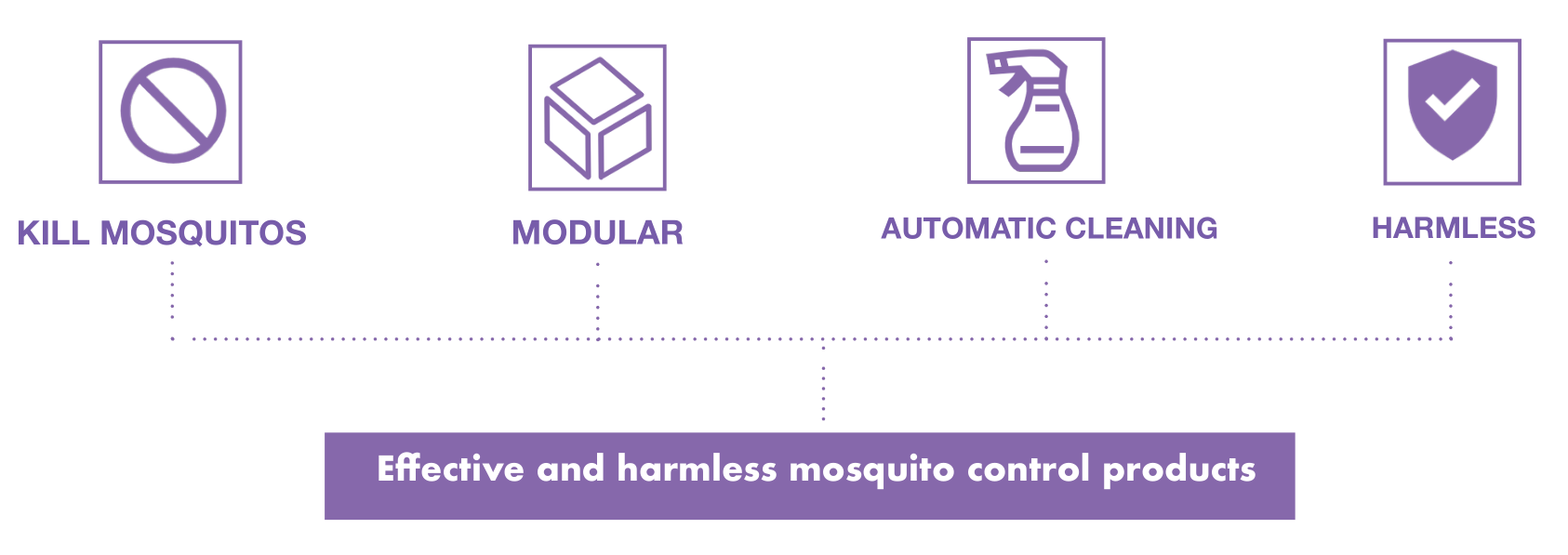

INTENTION MAP

EFFECTIVE

CLEAN

SAFE&HEALTHY

USING FLOW

Found a mosquito flying around

Can’t beat mosquitoes

Pick up Pitcher

The mosquito is sucked in by
strong airflow of pitcher!
